Soldering iron pinout

Connectors

Internal reference	Pin numbers	Photo	Dimensions	Type	Reference

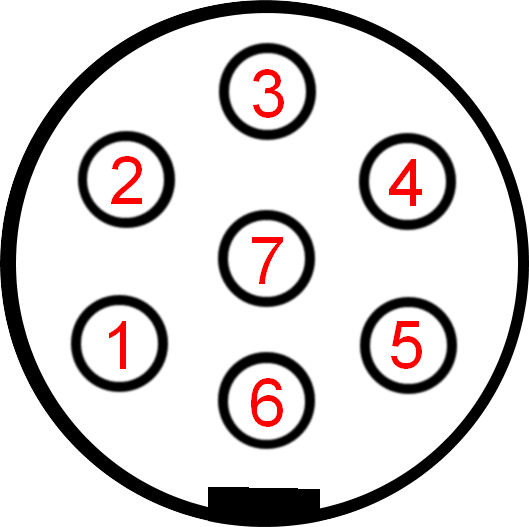

DIN7-W-F			Outer diameter: 16.5mm	Bayonet	Probably Amphenol C91B

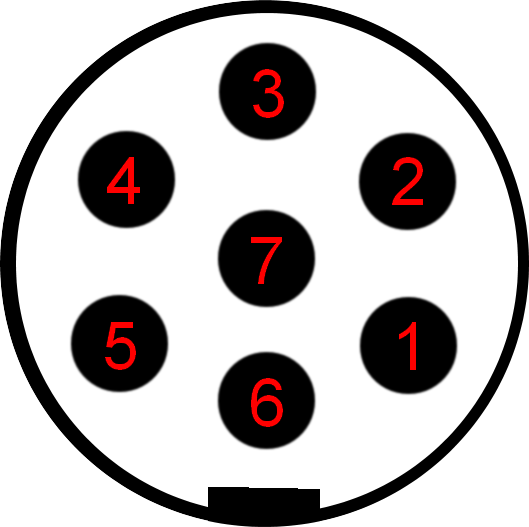

DIN7-W-M			Outer diameter: 13.5mm	Bayonet	Probably Amphenol C91B

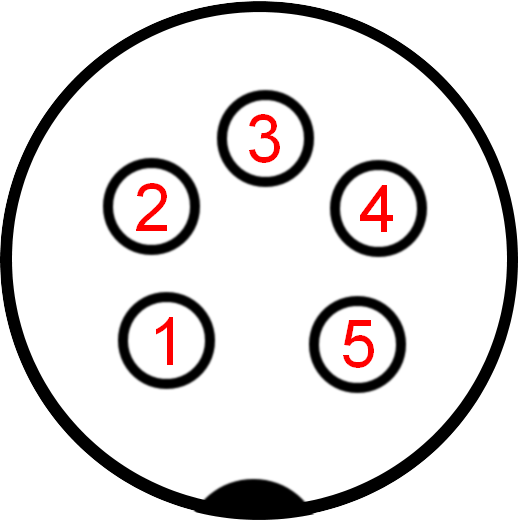

DIN5-P-F			Outer diameter: 12.5mm	Screw

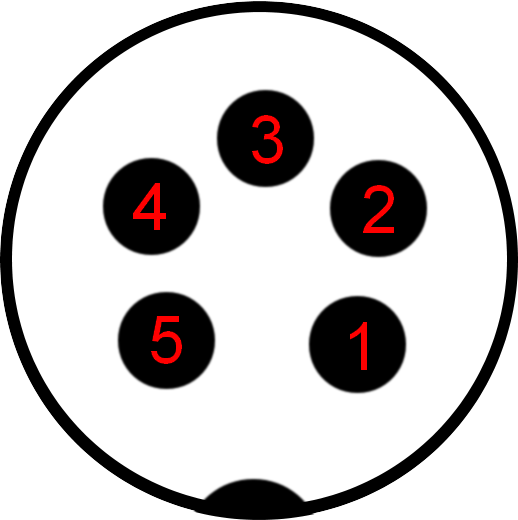

DIN5-P-M			Outer diameter: 15.5mm	Screw

Stations

Brand	Name	Output	Pinout	Connector

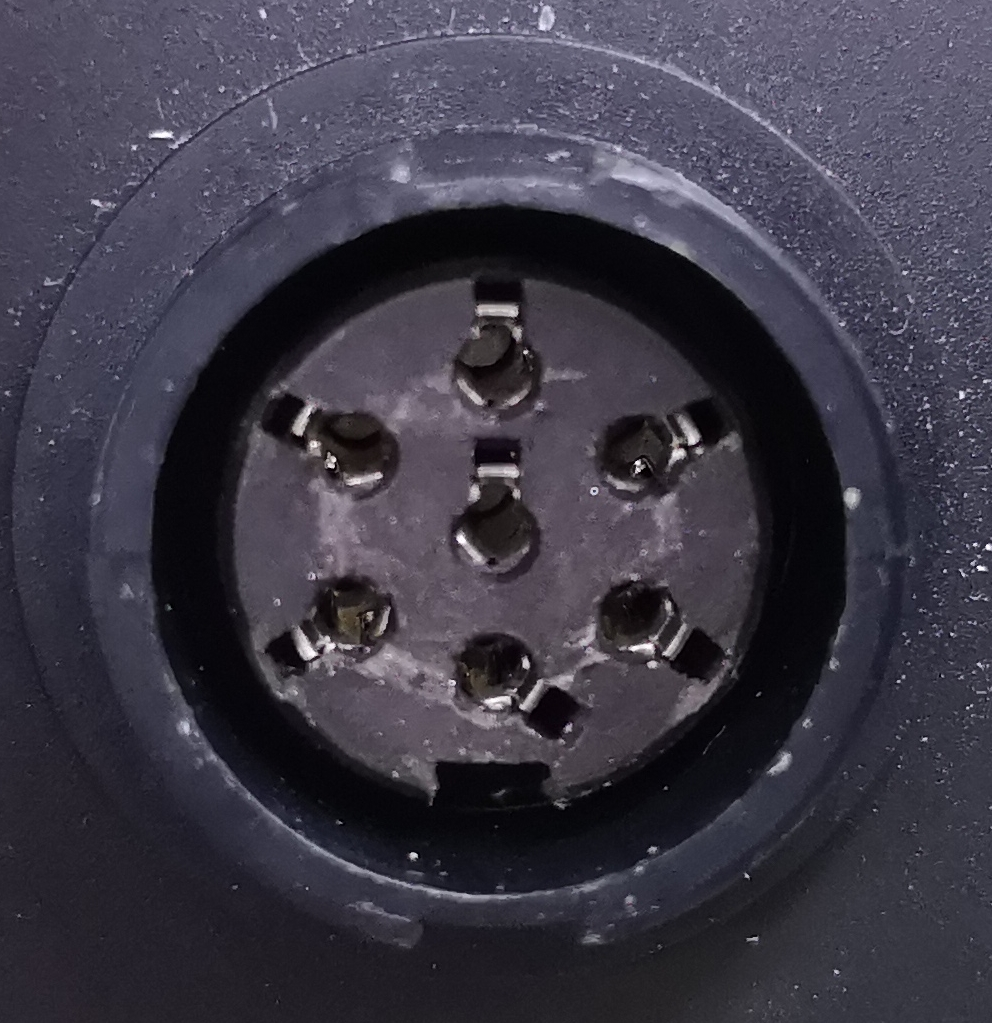

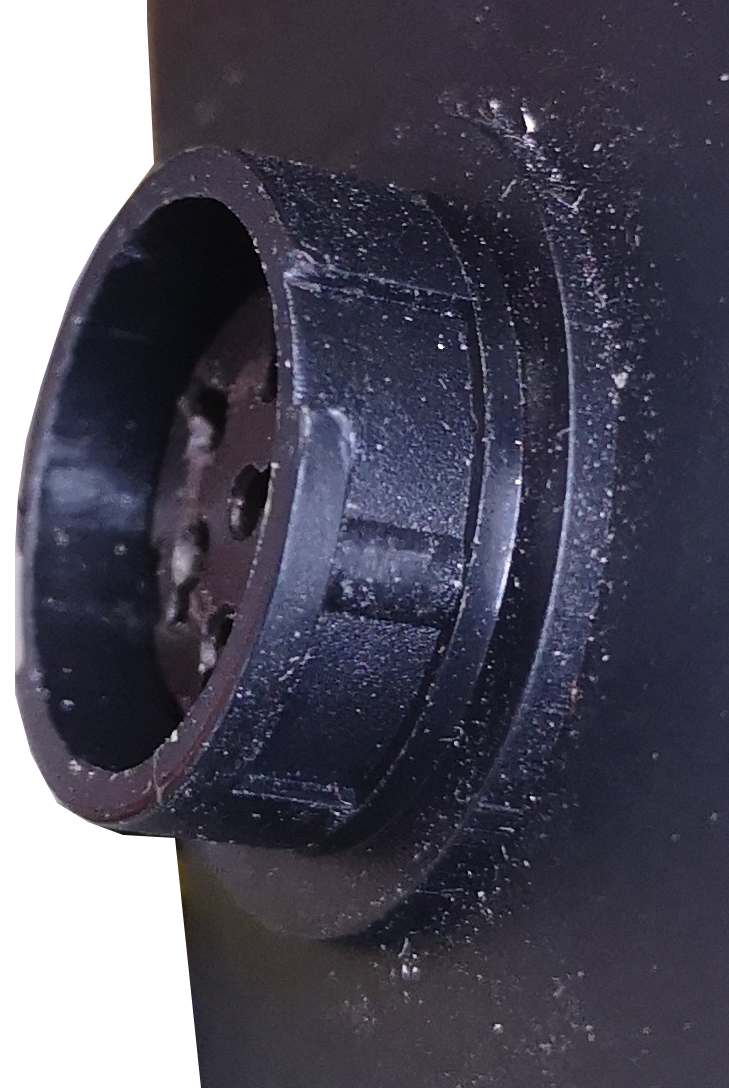

Weller	WE1010	23VAC 70W	? Heater Sensor Sensor Ground Heater ?	DIN7-W-F
Weller	PU81	24VAC 80W	Heater Heater Sensor Sensor Ground ? ?	DIN7-W-F

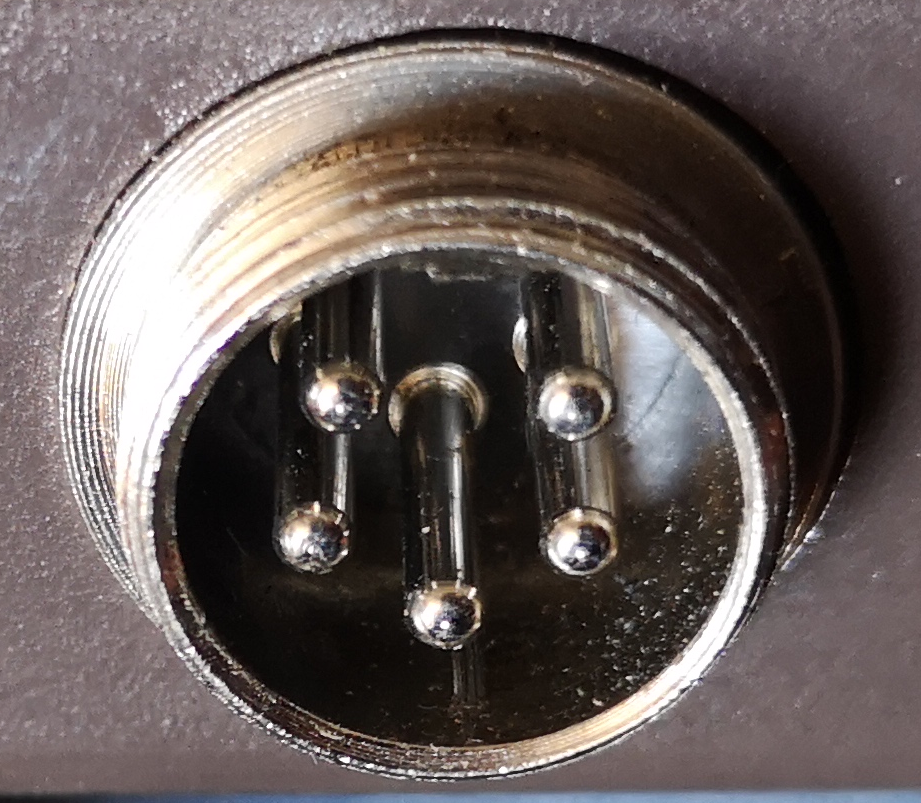

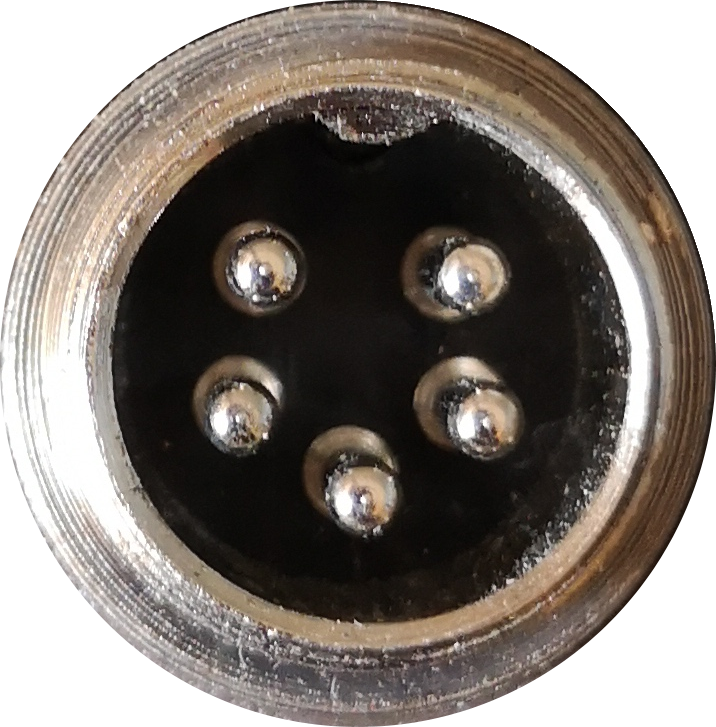

Philips	SBC345	24VAC 60W	Sensor- Sensor+ Heater+ Heater- Ground	DIN5-P-M

Handles

Brand	Name	Heater spec	Sensor spec	Pinout	Connector

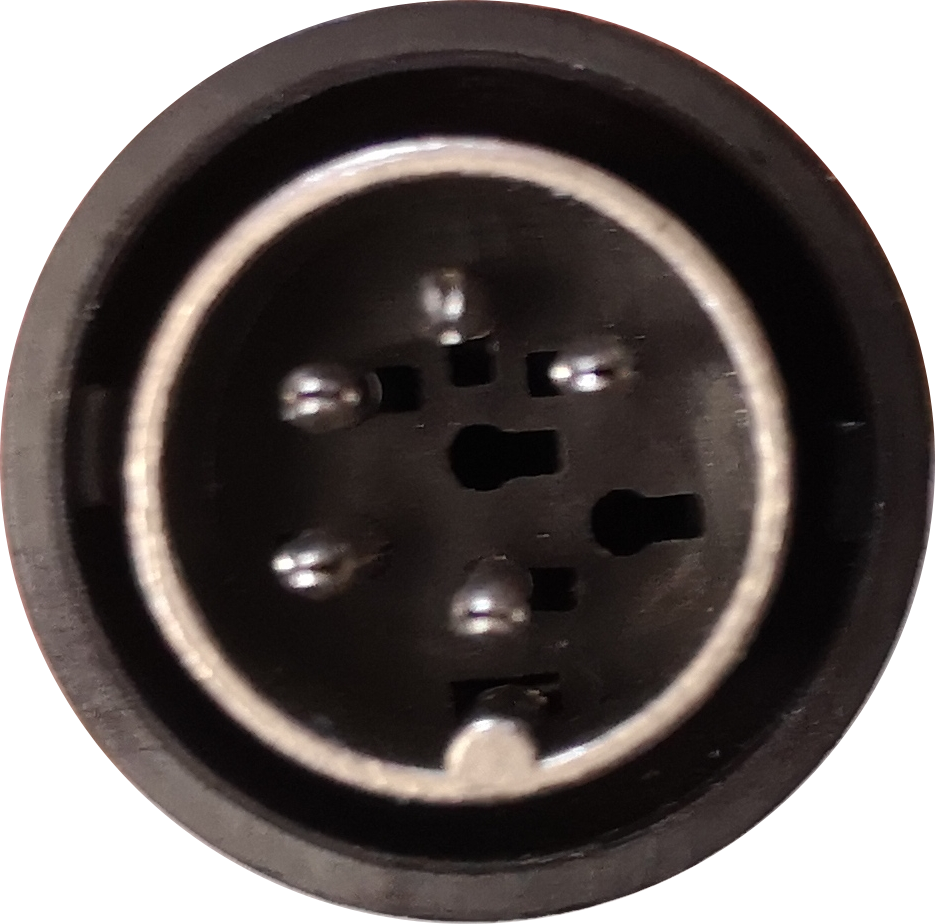

Weller	WEP70	7ohms 23V 70W	Thermocouple type (?), 3ohms	NP Heater Sensor Sensor Ground Heater NP	DIN7-W-M

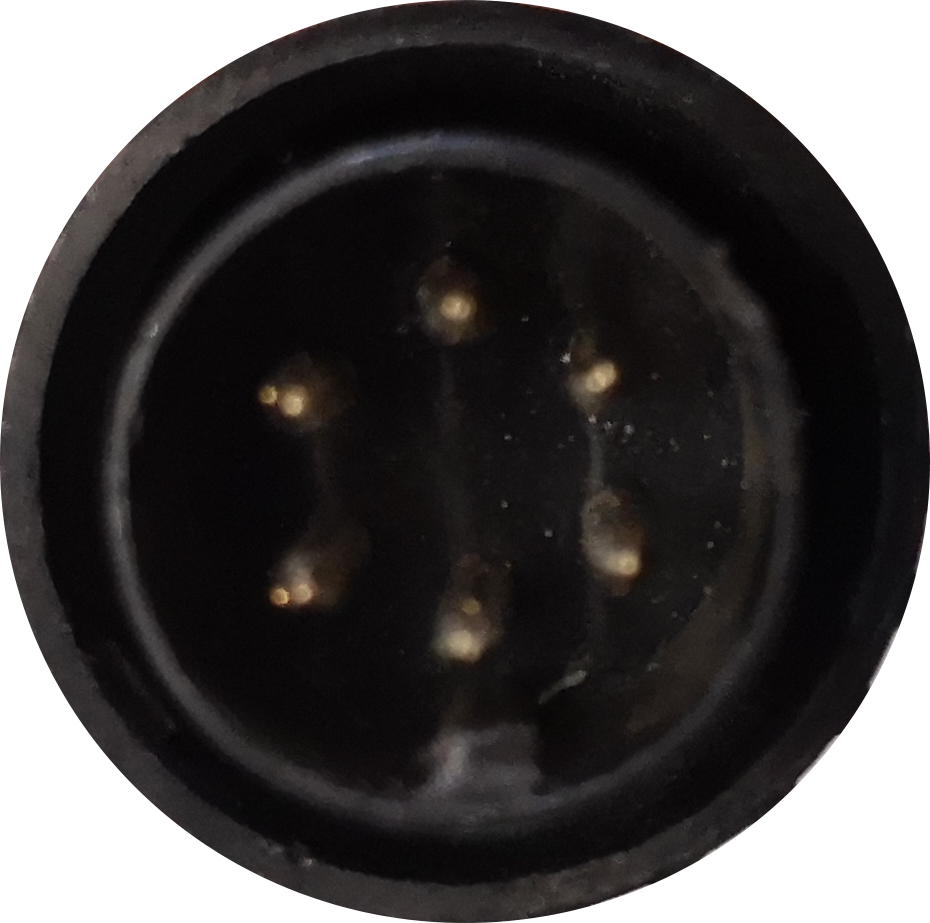

Weller	WSP80	7ohms 24V 80W	PTC, R=19.96+0.113*T	Heater Heater Sensor Sensor Ground NC NP	DIN7-W-M

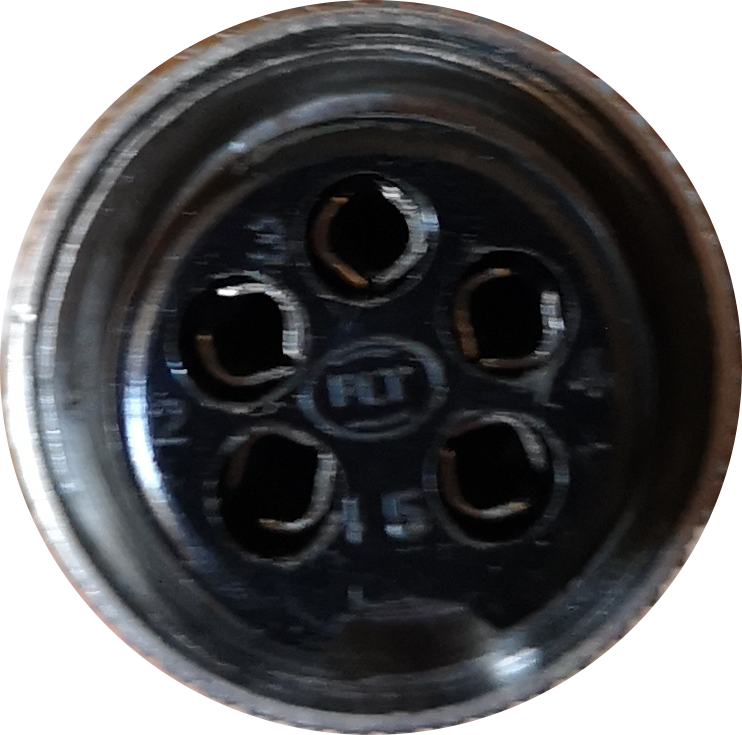

Philips	79-168003	?ohms 24V 60W	Thermocouple??	Sensor- Sensor+ Heater+ Heater- Ground	DIN5-P-F

NC: Not connected; NP: Not populated
